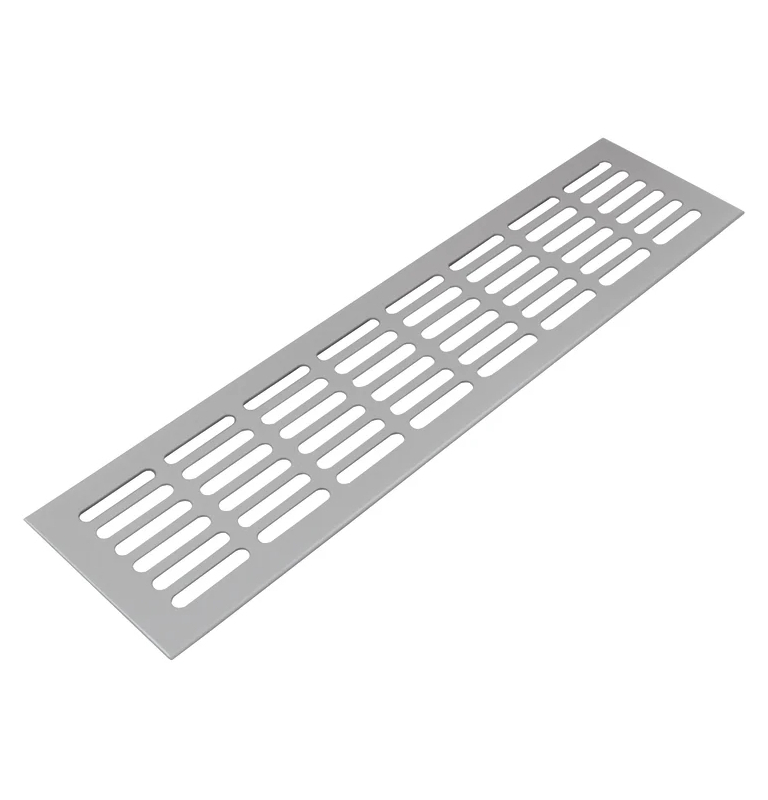

Ventilation Grille ALFA – The ALFA ventilation grille is made from aluminium and provides airflow through furniture, doors and building elements. It is suitable for ventilating built-in electrical appliances in kitchen units, radiator covers, HVAC openings, plasterboard partitions, doors and cabinets.

Available sizes

• Widths: 60, 80, 100, 130, 150 mm
• Lengths: 250, 400, 500, 600, 800, 1000, 2000 mm

Availability of a specific size and finish combination may vary.

Finishes

• Gloss white (RAL 9010)
• Matt bronze
• Matt black
• Matt stainless-steel finish
• Matt silver
• Matt gold

Cut-out dimensions

• cut-out length = overall grille length minus 25 mm
• cut-out width = overall grille width minus 14 mm

The grille overlaps the opening by approximately 12.5 mm at each end and 7 mm on each side.

Installation

The grille is intended for adhesive installation. The substrate should be firm, flat, clean, dry and free of grease. Use an adhesive suitable for aluminium and the substrate material.

Frequently asked questions

What is the grille made from?

Aluminium with the selected decorative finish.

Can it be used in kitchen furniture?

Yes, including ventilation of built-in electrical appliances.

Can it be installed in doors?

Yes, and also in furniture, plasterboard partitions and radiator covers.

How do I calculate the cut-out?

Subtract 25 mm from the overall length and 14 mm from the overall width.
