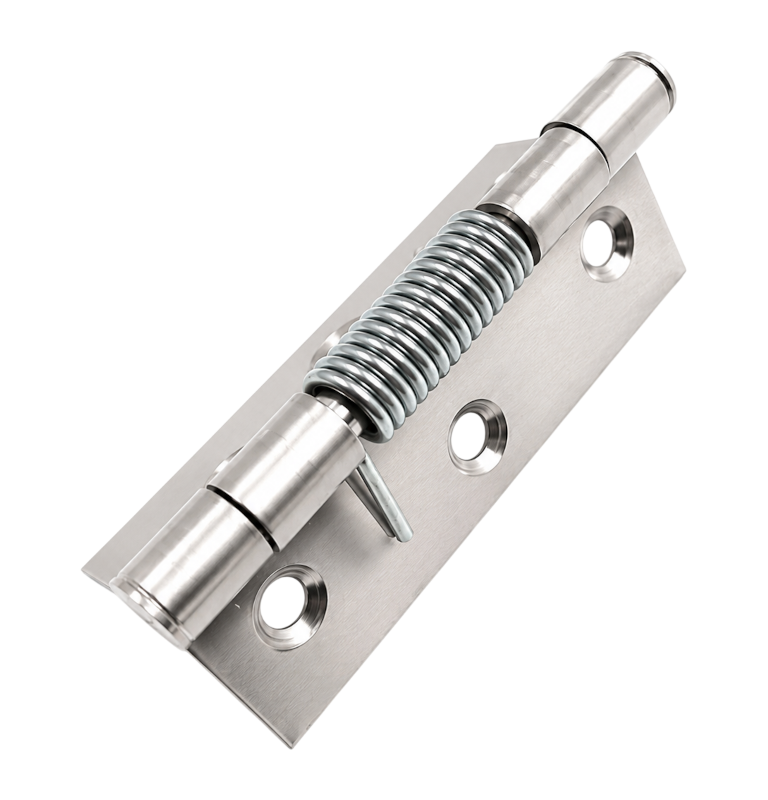

The KZ spring hinge 68 x 48 mm is a self-closing hinge suitable for furniture doors, cabinets, small boxes, covers and other lightweight doors. The integrated spring creates a closing action and returns the door to the closed position after release.

The hinge has a removable pin. Pulling out the pin separates the two hinge leaves, making installation, servicing or temporary door removal easier without unscrewing the complete hinge.

Key benefits

• spring-assisted self-closing action,
• removable pin for separating both hinge leaves,
• suitable for furniture and other lightweight doors,
• simple surface installation,
• six countersunk mounting holes,
• compact 68 x 48 mm dimensions.

Technical specifications

• Product type: self-closing spring hinge
• Model: KZ
• Hinge leaf dimensions: 68 x 48 mm
• Overall height including protruding pin: 71 mm
• Width of one leaf: 24 mm
• Sheet thickness: 1.2 mm
• Pin diameter: 8 mm
• Mounting hole diameter: 4.5 mm
• Number of mounting holes: 6
• Vertical mounting hole spacing: 25 mm
• Pin: removable
• Product code: 039132
• EAN: 8590531391323
• Weight: approximately 0.049 kg
• Price: per piece

Applications

The hinge is suitable for furniture doors, cabinets, storage boxes, small covers and other lightweight assemblies where the door should close automatically after release. Select the required number of hinges according to the dimensions, weight and operating conditions of the door.

Installation

Screw both hinge leaves to the surfaces of the cabinet and door. Before final tightening, check their alignment and the direction of the spring action. Select mounting screws according to the cabinet and door material and the required load capacity.

When using several hinges, install them in the same orientation so that the springs act together and the door moves smoothly without binding.

Frequently asked questions

Does the hinge close the door automatically?

Yes. After release, the spring creates a closing action and returns the door to the closed position.

Is the hinge pin removable?

Yes. Pulling out the pin separates the two hinge leaves without unscrewing the complete hinge.

What type of door is the hinge suitable for?

It is intended mainly for furniture and other lightweight doors, cabinets, small boxes and covers.

What are the hinge dimensions?

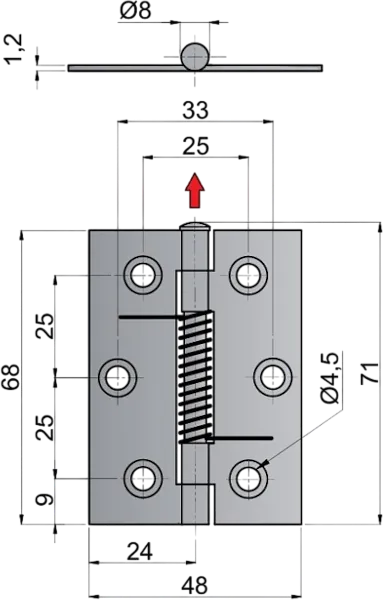

The hinge leaves measure 68 x 48 mm. The overall height including the protruding pin is 71 mm.
