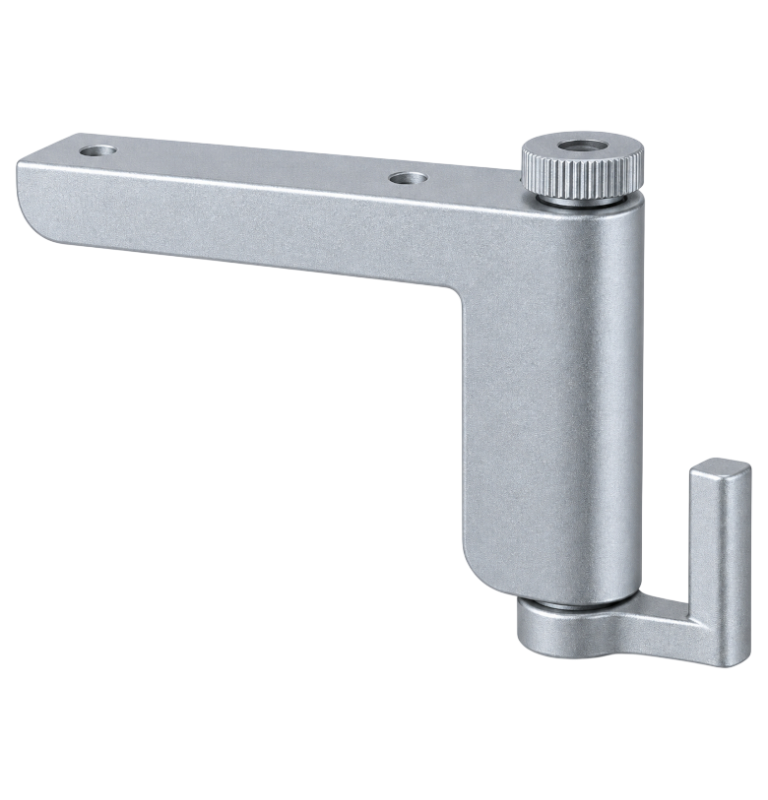

Mini Spring Door Closer ClipClose TS is a mechanical closer for interior doors. It clips onto the door leaf without drilling or screws and can be removed and reused without permanent damage.

The spring pulls the opened door back towards the closed position. Closing force is adjustable in 3 stages.

Key benefits

• no drilling or screws
• 3-stage closing-force adjustment
• for left- and right-handed doors
• removable and reusable
• helps reduce draughts and doors being left open
• made in Germany

Technical specifications

• Product type: spring closer for interior doors
• Model: ClipClose TS
• Dimensions: 98 × 60 × 19 mm
• Material: painted aluminium casting
• Closing-force adjustment: 3 stages
• Door handing: left and right
• Maximum door rebate: 16 mm
• Installation: clip-on without drilling or screws

Application

For standard rebated interior doors with a rebate up to 16 mm. Not suitable for glass doors.

Installation and adjustment

Clip the closer onto the upper part of the door leaf and orient it for a left- or right-handed door. Select one of three spring positions to adjust the closing force.

Frequently asked questions

Does installation require drilling?

No.

Can it be used on left and right doors?

Yes.

Is the closing force adjustable?

Yes, in three stages.

Is it suitable for glass doors?

No.

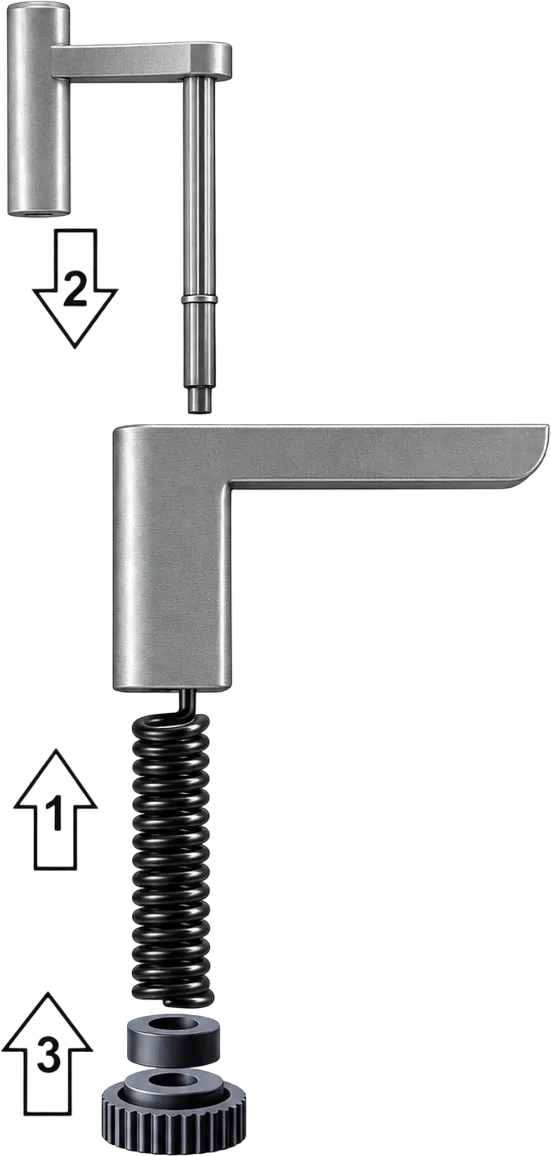

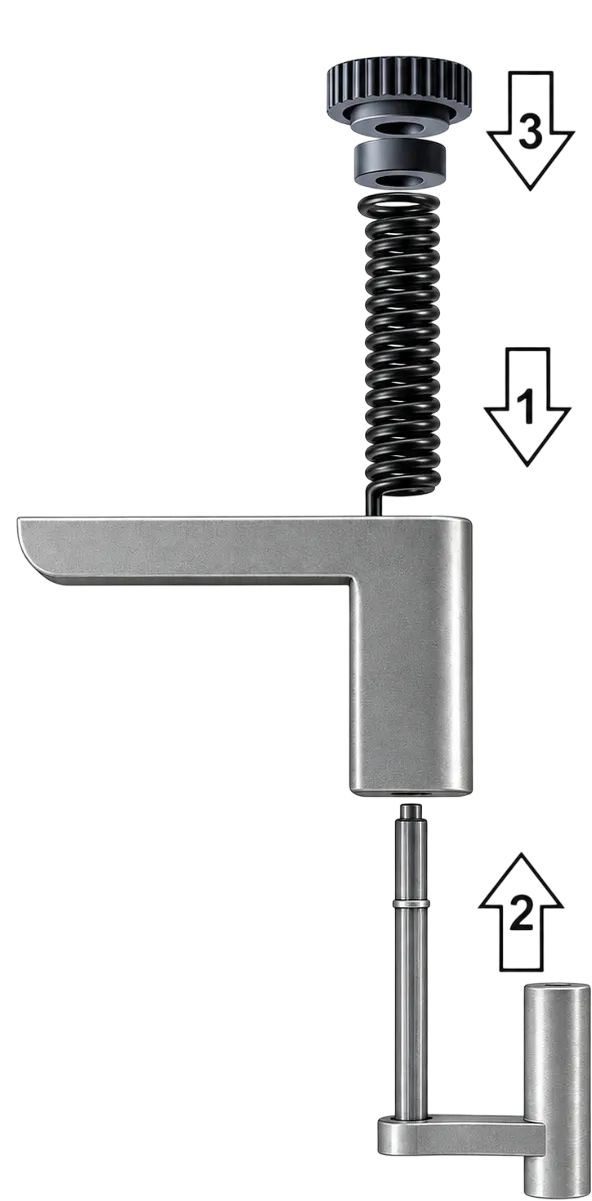

Left-hand door	Right-hand door
