COMAGLIO 1800XNS automatic door seal for wooden and steel doors. Suitable for fire and smoke-control doors with 60-minute resistance, acoustically certified to 54 dB, with a maximum seal drop of 18 mm.
Your data is protected with us.
Fast delivery of in-stock goods.
Goods can be returned in accordance with the law.

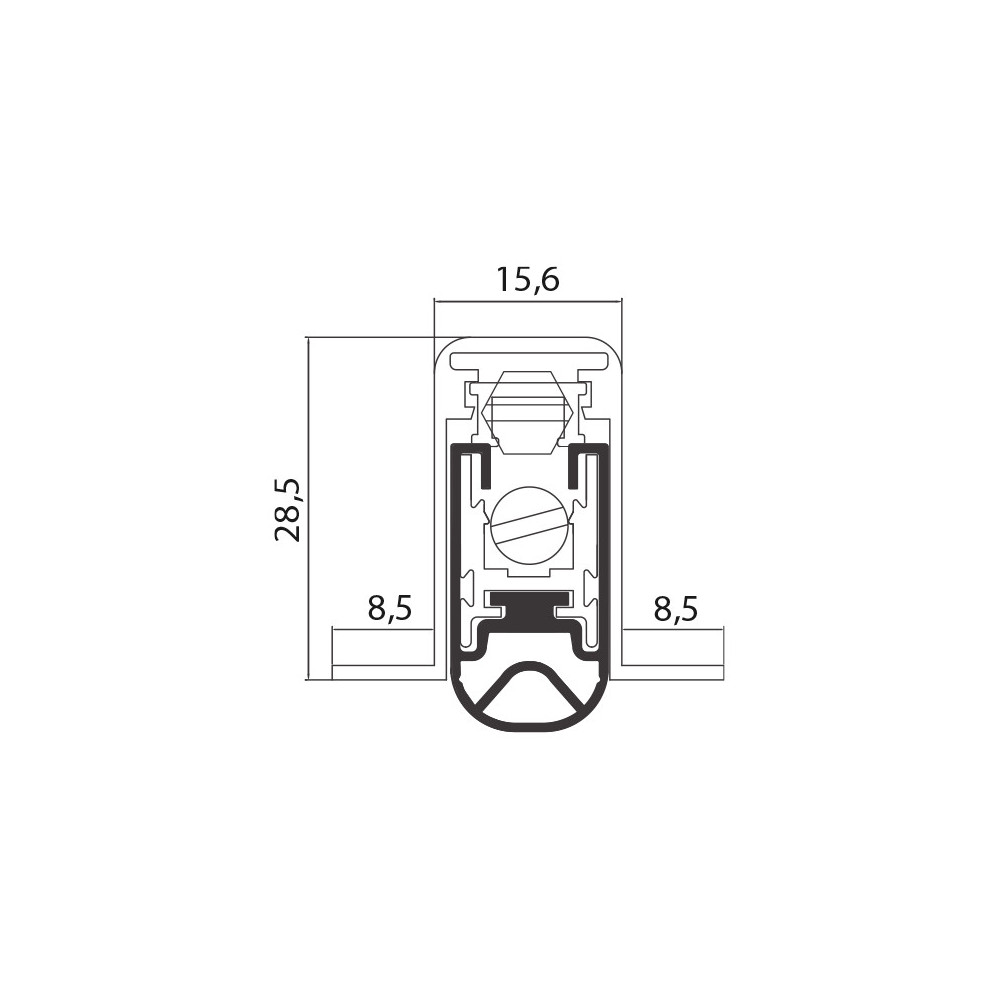

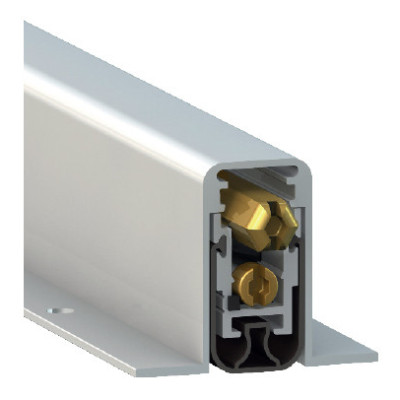

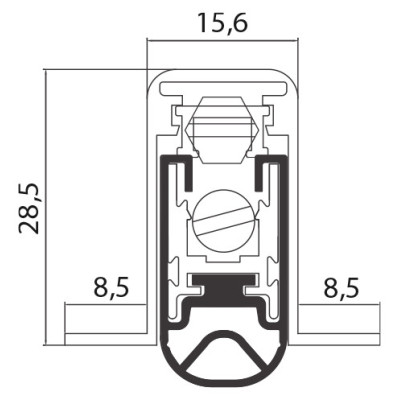

Automatic Door Seal 1800XNS is a durable automatic drop seal for wooden and steel doors. It is also suitable for fire and smoke-control doors with 60-minute resistance and is acoustically certified to 54 dB.
The seal drop is adjustable by means of a brass hexagonal button, with a maximum travel of 18 mm. The seal uses non-combustible silicone, is tested for 200,000 cycles and can be shortened by up to 100 mm. Fixing into the omega-shaped profile allows installation without removing the retractable sealing element.
It is designed for wooden and steel doors, including fire and smoke-control doors with 60-minute resistance.
The maximum travel of the sealing element is 18 mm.
Yes. It can be shortened by up to 100 mm.
Yes. The product has acoustic certification to 54 dB.
Data sheet
Specific References

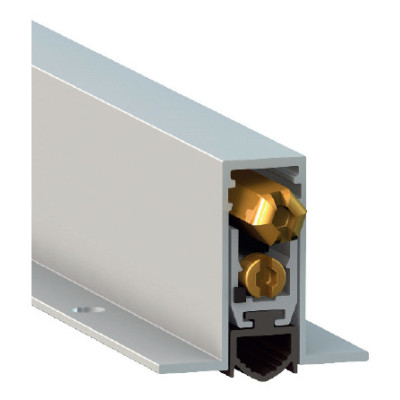

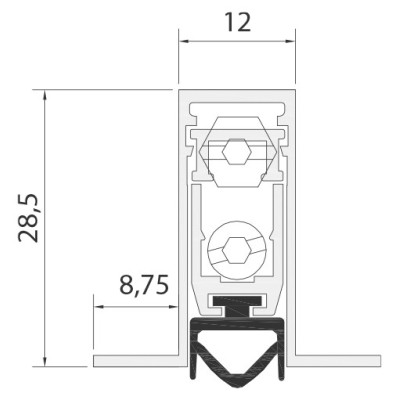

COMAGLIO 1812 automatic door seal for wooden and steel doors. Suitable for fire and smoke-control doors with 30-minute resistance and acoustically certified to 44 dB.

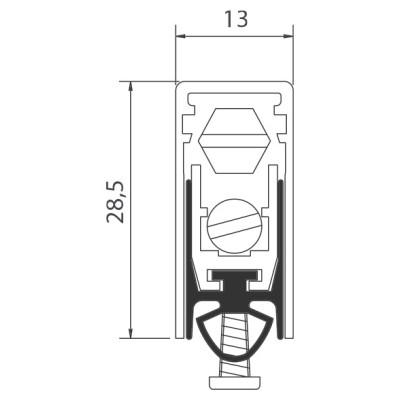

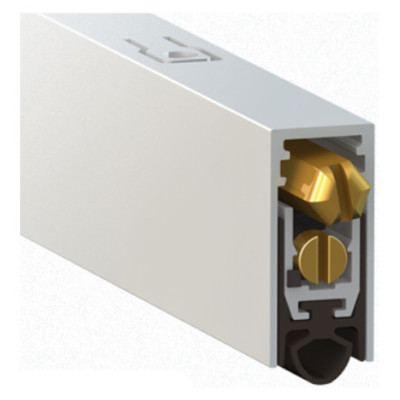

COMAGLIO 1773 ACU automatic door seal for wooden and steel doors. Suitable for fire and smoke-control doors with 60-minute resistance and acoustically certified to 50 dB.
Surface-mounted COMAGLIO 1750COMAX automatic door seal for wooden, steel, aluminium and PVC doors. It mounts directly to the door leaf, offers an adjustable drop up to 13 mm, 39 dB acoustic certification and tested durability of 200,000 cycles.
COMAGLIO 1800XNS automatic door seal for wooden and steel doors. Suitable for fire and smoke-control doors with 60-minute resistance, acoustically certified to 54 dB, with a maximum seal drop of 18 mm.
