Surface-Mounted Automatic Door Seal 1750COMAX
€41.67
Surface-mounted COMAGLIO 1750COMAX automatic door seal for wooden, steel, aluminium and PVC doors. It mounts directly to the door leaf, offers an adjustable drop up to 13 mm, 39 dB acoustic certification and tested durability of 200,000 cycles.
Secure shopping
Your data is protected with us.
Delivery of goods
Fast delivery of in-stock goods.
Returns
Goods can be returned in accordance with the law.

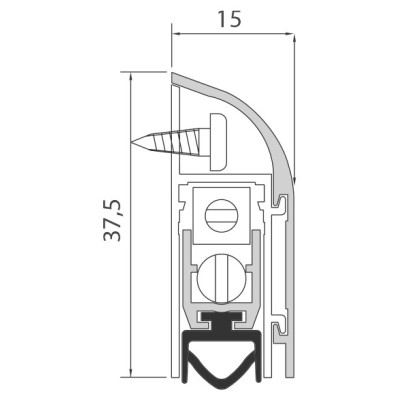

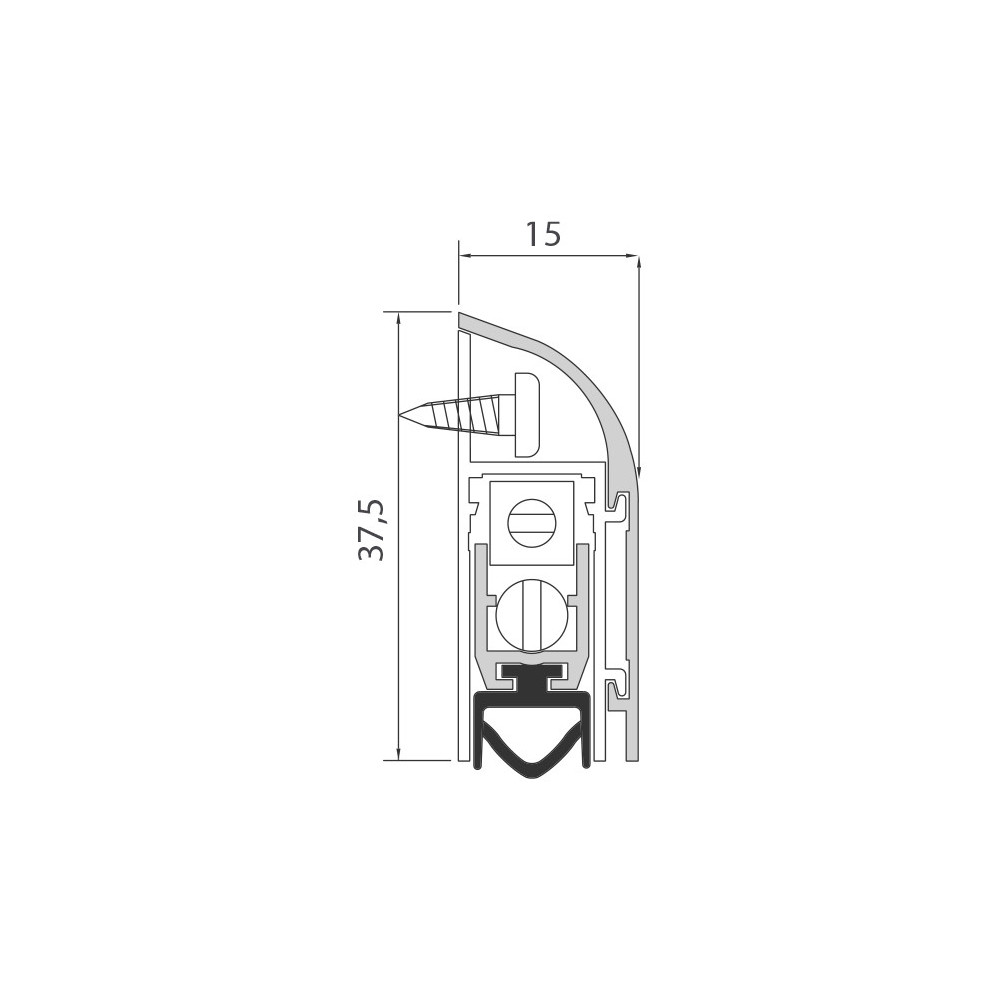

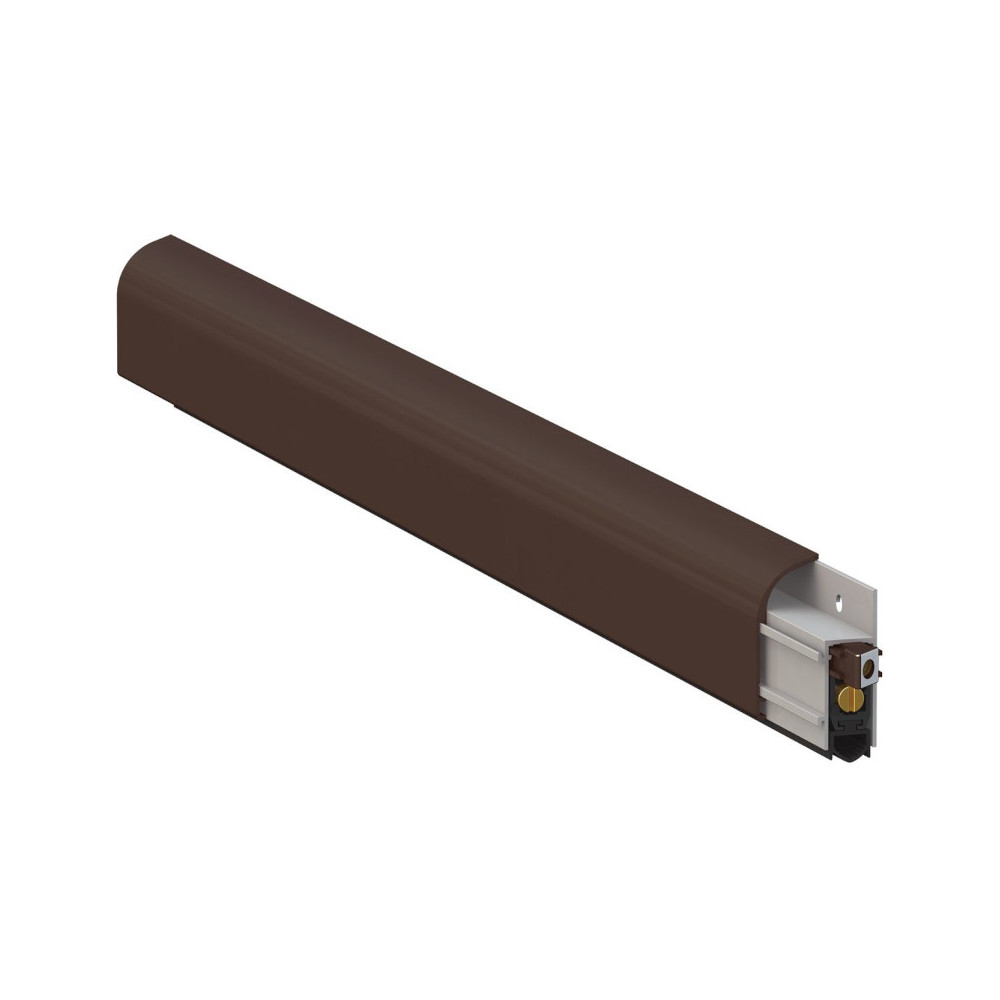

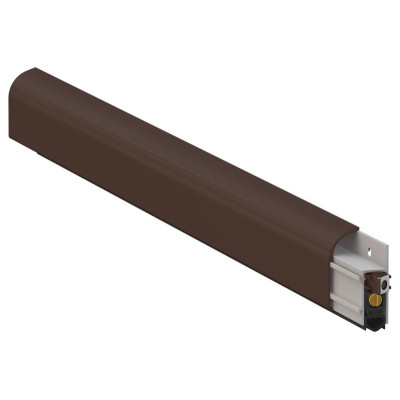

Surface-Mounted Automatic Door Seal 1750COMAX is an automatic retractable seal designed for surface mounting directly onto the door leaf. It is suitable for wooden, steel, aluminium and PVC doors and can be installed on either side of the leaf.
The mechanism allows separate adjustment of the drop and the inclination of the sealing element, helping the gasket contact the floor evenly along its full length. Maximum drop is 13 mm. The seal is acoustically certified to 39 dB, tested for 200,000 cycles and can be shortened by up to 100 mm. The sealing element is EPDM.
Key features
- surface-mounted directly on the door leaf
- installation on either side of the door leaf
- for wooden, steel, aluminium and PVC doors
- separate adjustment of seal drop and inclination
- maximum drop 13 mm
- 39 dB acoustic certification
- tested durability of 200,000 cycles
- can be shortened by up to 100 mm
- EPDM gasket
Technical specifications
- Product type: surface-mounted automatic / retractable door seal
- Manufacturer: COMAGLIO
- Model: 1750COMAX
- Installation: surface-mounted on the door leaf
- Application: wooden, steel, aluminium and PVC doors
- Acoustic certification: 39 dB
- Maximum drop: 13 mm
- Maximum shortening: 100 mm
- Durability: tested for 200,000 cycles
- Gasket: EPDM
Frequently asked questions
How is the 1750COMAX installed?
It is surface-mounted directly onto the door leaf and can be fitted on either side of the door.
Which doors is it suitable for?
Wooden, steel, aluminium and PVC doors.
What is the maximum seal drop?
The maximum drop is 13 mm, and the inclination of the sealing element can also be adjusted.
Can the seal be shortened?
Yes. It can be shortened by up to 100 mm.
CO-1750COMAX
Specific References
- EAN13
- 8584138221091
Customers who bought this product also bought:
Handle PERFECTA - RT
€67.88
Availability:
1000 In Stock
Surface: Nickel matt, Graphite matt, Gold matt, White matt, Black matt, Matt copper
Door Handle PERFECTA SWITCH LOCK - RT
€93.98
Availability:
1000 In Stock
Door Handle with Locking MPK PERFECTA SWITCH LOCK - RT is a modern rosette handle set with integrated locking and no lower rosette. It is available in seven finishes and in variants for door thicknesses 38–45 mm, 45–55 mm and 55–65 mm.

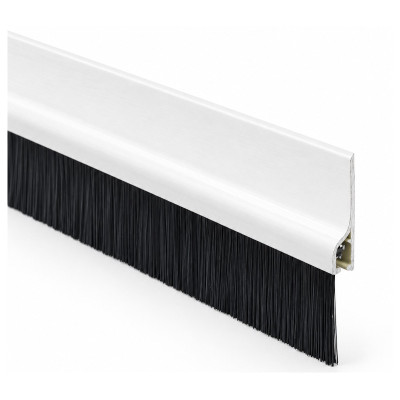

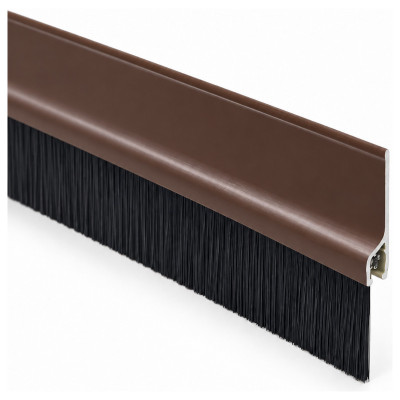

Self-Adhesive Brush Door Bottom Seal ESO
