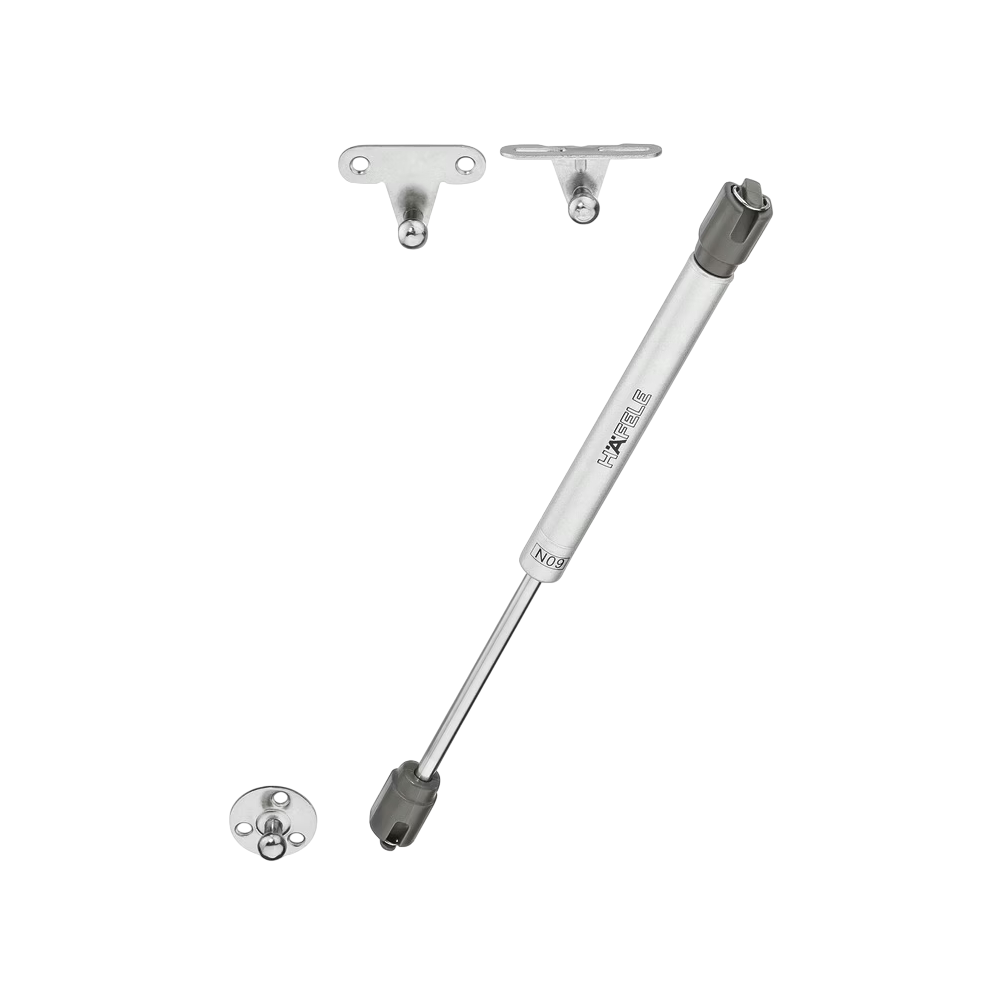

The HÄFELE lift-up gas spring ensures smooth and safe opening of furniture flap doors. Ideal for kitchen and wall cabinets, easy to install and designed for long-lasting performance.
Your data is protected with us.
Fast delivery of in-stock goods.
Goods can be returned in accordance with the law.
| Door opening angle | Lift force | Door height [mm] | |||
|---|---|---|---|---|---|
| 300 | 400 | 500 | 600 | ||
| Door weight [kg] | |||||
|
75°
 |
60 N | 2,0 | 1,5 | 1,2 | 1,0 |
| 80 N | 2,7 | 2,0 | 1,6 | 1,4 | |
| 100 N | 3,4 | 2,6 | 2,0 | 1,8 | |
| 120 N | 4,1 | 3,1 | 2,5 | 2,0 | |
| 150 N | 4,7 | 3,5 | 2,9 | 2,4 | |
|
90°
 |
60 N | 1,8 | 1,3 | 1,1 | 0,9 |
| 80 N | 2,4 | 1,8 | 1,4 | 1,2 | |
| 100 N | 3,0 | 2,2 | 1,8 | 1,5 | |
| 120 N | 3,6 | 2,7 | 2,1 | 1,8 | |
| 150 N | 4,7 | 3,2 | 2,3 | 2,1 | |
|
110°
 |
60 N | 1,6 | 1,2 | 0,9 | 0,8 |
| 80 N | 2,1 | 1,6 | 1,2 | 1,0 | |
| 100 N | 2,6 | 1,9 | 1,6 | 1,3 | |
| 120 N | 3,1 | 2,3 | 1,9 | 1,6 | |
| 150 N | 3,5 | 2,6 | 2,2 | 1,9 | |
| Door opening angle | Inset door | Twin door | Overlay door | ||||||
|---|---|---|---|---|---|---|---|---|---|
| H [mm] | L [mm] | A [mm] | H [mm] | L [mm] | A [mm] | H [mm] | L [mm] | A [mm] | |
| 75° | 278 | 80 | 45 | 266 | 80 | 25 | 260 | 80 | 25 |
| 90° | 255 | 80 | 45 | 250 | 80 | 25 | 238 | 80 | 25 |
| 110° | 239 | 70 | 45 | 225 | 70 | 25 | 215 | 80 | 25 |
Surface: Matt chrome, White matt, Black matt
Surface: Matt bronze, Polished nickel, Polished brass
The HÄFELE lift-up gas spring ensures smooth and safe opening of furniture flap doors. Ideal for kitchen and wall cabinets, easy to install and designed for long-lasting performance.
